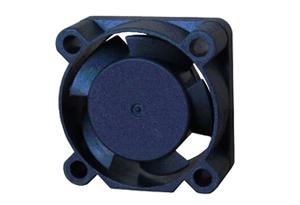

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD052507HSL | 0.20 | 1.00 | 10000 | 1.92 | 3.55 | 22.50 | 6 | |||
| YD052507MSL | Sleeve | 5 | 4.5～5.5 | 0.16 | 0.80 | 9000 | 1.80 | 2.64 | 20.58 | 6 |
| YD052507LSL | 0.12 | 0.60 | 8000 | 1.60 | 1.58 | 20.18 | 6 | |||
| YD122507HSL | 0.15 | 1.80 | 10000 | 1.92 | 3.55 | 22.50 | 6 | |||
| YD122507MSL | Sleeve | 12 | 10.8～13.2 | 0.12 | 1.44 | 9000 | 1.80 | 2.64 | 20.58 | 6 |
| YD122507LSL | 0.09 | 10.8 | 8000 | 1.60 | 1.58 | 20.18 | 6 | |||
