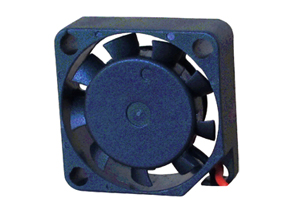

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD052010HSL | 0.20 | 1.0 | 18000 | 1.89 | 7.23 | 37.28 | 5.5 | |||
| YD052010MSL | Sleeve | 5 | 4.5～5.5 | 0.15 | 0.75 | 12000 | 1.27 | 3.93 | 27.13 | 5.5 |
| YD052010LSL | 0.10 | 0.5 | 9000 | 0.85 | 2.32 | 20.55 | 5.5 | |||
| YD122010HSL | 0.15 | 1.8 | 15000 | 1.89 | 7.23 | 37.28 | 5.5 | |||
| YD122010MSL | Sleeve | 12 | 10.8～13.2 | 0.10 | 1.2 | 12000 | 1.27 | 3.93 | 27.13 | 5.5 |
| YD122010LSL | .0.07 | 0.84 | 9000 | 0.85 | 2.32 | 20.55 | 5.5 | |||
