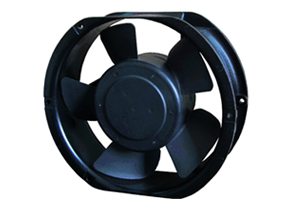

172*150*51mm 直流风扇

17215051
点击下载点击下载

DC Axial-Flow Fan

★General Specification(一般规格)
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)

★Dimensions Drawing(外观图) ★Characteristic Curves(特性曲线)
17251.1 17251.2
★Specifications(规格)
Model Bearing Rated Operation Current Input Speed Air Flow Static Niose Weight
System Voltage Voltage power Pressure Level
(V) (V) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
(型号) (培林) (电压) (电压范围) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
YD2417251HBL 24 21.6~26.4 1.00 24.0 3600 266.00 19.48 67.00 760
YD2417251MBL Ball 0.60 14.4 3000 222.00 13.54 55.80 760
YD2417251LBL 0.40 9.6 2500 185.00 9.40 46.50 760
YD4817251HBL 48 43.2~52.8 0.60 28.8 3600 266.00 19.48 67.00 760
YD4817251MBL Ball 0.35 16.8 3000 222.00 13.54 55.80 760
YD4817251LBL 0.25 12.0 2500 185.00 9.40 46.50 760
