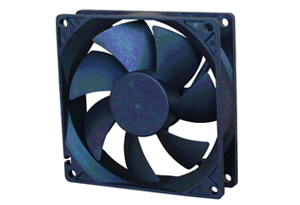

DC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Operation | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | Voltage | power | Pressure | Level | |||||
| (V) | (V) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (电压范围) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YD129225HSL | 12 | 10.8～13.2 | 0.25 | 3.00 | 2800 | 54.73 | 3.04 | 32.81 | 85 | |
| YD129225MSL | Sleeve | 0.20 | 2.40 | 2500 | 46.46 | 2.11 | 28.58 | 85 | ||
| YD129225LSL | 0.16 | 1.92 | 2000 | 39.87 | 1.67 | 25.87 | 85 | |||
| YD129225HBL | 0.25 | 3.00 | 2800 | 54.73 | 3.04 | 32.81 | 85 | |||
| YD129225MBL | Ball | 0.20 | 2.40 | 2500 | 46.46 | 2.11 | 28.58 | 85 | ||
| YD129225LBL | 0.16 | 1.92 | 2000 | 39.87 | 1.67 | 25.87 | 85 | |||
| YD249225HSL | 24 | 21.6～26.4 | 0.15 | 3.60 | 2800 | 54.73 | 3.04 | 32.81 | 85 | |
| YD249225MSL | Sleeve | 0.10 | 2.40 | 2500 | 46.46 | 2.11 | 28.58 | 85 | ||
| YD249225LSL | 0.07 | 1.68 | 2000 | 39.87 | 1.67 | 25.87 | 85 | |||
| YD249225HBL | 0.15 | 2.64 | 2800 | 54.73 | 3.04 | 32.81 | 85 | |||
| YD249225MBL | Ball | 0.10 | 2.40 | 2500 | 46.46 | 2.11 | 28.58 | 85 | ||
| YD249225LBL | 0.07 | 1.68 | 2000 | 39.87 | 1.67 | 25.87 | 85 | |||
