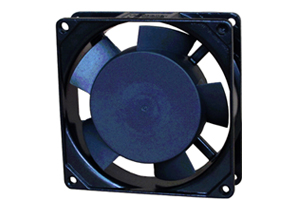

AC Axial-Flow Fan
★General Specification(一般规格)
☆Material:
Lmpeller:Thermal Plastic UL 94V-0
Frame:Aluminium Alloy
☆Lead Wires:UL Type
☆Motor Protection:Lmpedance Protected
☆Insulation Resistance:10MΩ Or Over With a
DC500V Megger
☆Dielectric Strength:AC1500V 0.5mA 1S
☆Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)
★Dimensions Drawing(外观图) | ★Characteristic Curves(特性曲线) | |
★Specifications(规格) | ||||||||||
Model | Bearing | Rated | Freq. | Current | Input | Speed | Air Flow | Static | Niose | Weight |
System | Voltage | power | Pressure | Level | ||||||
(V) | (Hz) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
(型号) | (培林) | (电压) | (频率) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
YA19225HSL | Sleeve | 110 | 50/60 | 0.13/0.11 | 12/9.5 | 2400/2800 | 28/36 | 3.45/4.70 | 29/34 | 240 |
YA19225HBL | Ball | 110 | 50/60 | 0.13/0.11 | 12/9.5 | 2450/2850 | 29/37 | 3.50/4.76 | 29/34 | 240 |
YA29225HSL | Sleeve | 220 | 50/60 | 0.09/0.08 | 15.5/12.5 | 2450/2900 | 29/37 | 3.50/4.76 | 29/34 | 240 |
YA29225HBL | Ball | 220 | 50/60 | 0.09/0.08 | 15.5/12.5 | 2500/3000 | 30/38 | 3.55/4.82 | 29/34 | 240 |
