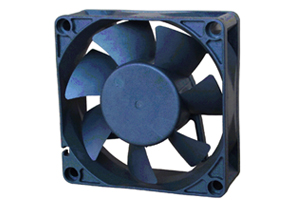

70*70*25mm 直流风扇

707025
点击下载点击下载

DC Axial-Flow Fan

★General Specification(一般规格)
☆Material:
Frame And Lmpeller:Thermal Plastic UL 94V-0
☆Lead Wires:UL Type
RED Wire Positive(+)
BLACK Wire Negative(-)
☆Insulation Resistance:10MΩ Or Over With a
DC250V Megger
☆Dielectric Withstand Voltage:AC500V 1S
☆Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)

★Dimensions Drawing(外观图) ★Characteristic Curves(特性曲线)
7025.1 7025.2
★Specifications(规格)
Model Bearing Rated Operation Current Input Speed Air Flow Static Niose Weight
System Voltage Voltage power Pressure Level
(V) (V) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
(型号) (培林) (电压) (电压范围) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
YD127025HSL 12 10.8~13.2 0.30 3.60 4000 40.32 7.71 36.86 63
YD127025MSL Sleeve 0.20 2.40 3400 31.53 4.95 29.49 63
YD127025LSL 0.15 1.80 3000 23.72 3.10 24.84 63
YD127025HBL 0.30 3.60 4000 40.32 7.71 36.86 63
YD127025MBL Ball 0.20 2.40 3400 31.53 4.95 29.49 63
YD127025LBL 0.15 1.80 3000 23.72 3.10 24.84 63
YD247025HSL 24 21.6~26.4 0.20 4.80 4000 40.32 7.71 36.86 63
YD247025MSL Sleeve 0.11 2.64 3400 31.53 4.95 29.49 63
YD247025LSL 0.08 1.92 3000 23.72 3.10 24.84 63
YD247025HBL 0.20 4.80 4000 40.32 7.71 36.86 63
YD247025MBL Ball 0.11 2.64 3400 31.53 4.95 29.49 63
YD247025LBL 0.08 1.92 3000 23.72 3.10 24.84 63
