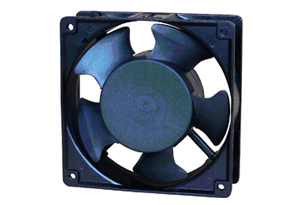

AC Axial-Flow Fan
★General Specification(一般规格）
☆Material:
Lmpeller:Thermal Plastic UL 94V-0
Frame:Aluminium Alloy
☆Lead Wires:UL Type
☆Motor Protection:Lmpedance Protected
☆Insulation Resistance:10MΩ Or Over With a
DC500V Megger
☆Dielectric Strength:AC1500V 0.5mA 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Dimensions Drawing（外观图） | ★Characteristic Curves（特性曲线） | |
 |
 |
 |
| ★Specifications（规格） | ||||||||||
| Model | Bearing | Rated | Freq. | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | power | Pressure | Level | ||||||
| (V) | (Hz) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (频率) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YA11238HSL | Sleeve | 110 | 50/60 | 0.24/0.20 | 17.0/14.0 | 2600/2850 | 90/102 | 7.40/8.06 | 40/45 | 480 |
| YA11238HBL | Ball | 110 | 50/60 | 0.24/0.20 | 17.0/14.0 | 2650/2950 | 92/105 | 7.49/8.13 | 40/45 | 480 |
| YA21238HSL | Sleeve | 220 | 50/60 | 0.12/0.10 | 17.0/15.0 | 2600/2850 | 90/102 | 7.40/8.06 | 40/45 | 480 |
| YA21238HBL | Ball | 220 | 50/60 | 0.12/0.10 | 17.0/15.0 | 2650/2950 | 92/105 | 7.49/8.13 | 40/45 | 480 |
| YA31238HSL | Sleeve | 380 | 50/60 | 0.07/0.06 | 17.0/14.0 | 2550/2850 | 88/102 | 7.36/8.06 | 40/45 | 480 |
| YA31238HBL | Ball | 380 | 50/60 | 0.07/0.06 | 17.0/14.0 | 2600/2900 | 90/103 | 7.40/8.08 | 40/45 | 480 |
