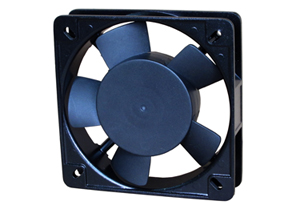

110*110*25mm 交流风扇

11011025
点击下载点击下载

AC Axial-Flow Fan

★General Specification(一般规格)
☆Material:
Lmpeller:Thermal Plastic UL 94V-0
Frame:Aluminium Alloy
☆Lead Wires:UL Type
☆Motor Protection:Lmpedance Protected
☆Insulation Resistance:10MΩ Or Over With a
DC500V Megger
☆Dielectric Strength:AC1500V 0.5mA 1S
☆Allowable Ambient Temperature Range:
-10℃~+70℃(Operation)
-40℃~+70℃(Storage)

★Dimensions Drawing(外观图) ★Characteristic Curves(特性曲线)
1125.1 1125.2 1125.3
★Specifications(规格)
Model Bearing Rated Freq. Current Input Speed Air Flow Static Niose Weight
System Voltage power Pressure Level
(V) (Hz) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
(型号) (培林) (电压) (频率) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
YA11125HSL Sleeve 110 50/60 0.15/0.14 13.0/11.0 2000/2200 42/52 3.45/4.70 36/38 280
YA11125HBL Ball 110 50/60 0.15/0.14 13.0/11.0 2050/2250 42/53 3.50/4.76 36/38 280
YA21125HSL Sleeve 220 50/60 0.11/0.09 18.0/14.0 2150/2400 44/54 3.05/4.57 36/38 280
YA21125HBL Ball 220 50/60 0.11/0.09 18.0/14.0 2150/2400 44/54 3.55/4.82 36/38 280
